NVIDIA SLI technology for NVIDIA Quadro graphics solutions

SLI Multi View: Combines the power of two identical NVIDIA Quadro PCI Express graphics cards to drive multiple displays, with each GPU dedicated to a single display or to a pair of displays.


  • View professional applications over multiple displays to increase visual real estate. (Fully accelerated on Linux)
SLI Multi View Using 2 Fully Accelerated Outputs:

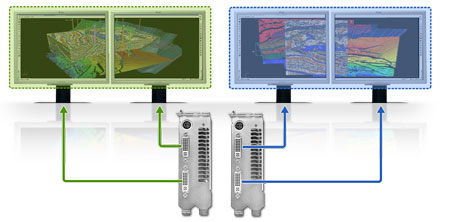

SLI Multi View Using 4 Outputs:

Images courtesy of Landmark, a brand of the Haliburton Digital and Consulting Solutions Division


  • Two identical NVIDIA Quadro FX 5600, 5500, 4600, 4500, 3500, 3450, 3400, 1500, 1400, 560, 550 or 540 graphics cards
  Windows Linux
   DVI Outputs 1 to 4 1 to 4
   FSAA * Up to 32x Up to 32x
   Stereo with G-Sync
   SDI - -
   Overlap between GPUs -
* NVIDIA Quadro FX 5600 and FX 4600 support up to 32x FSAA. Remaining NVIDIA Quadro FX boards support up to 16x FSAA.
